Connect an AWS Account (CloudCADI hosted on GCP)

Prerequisites

Before you start

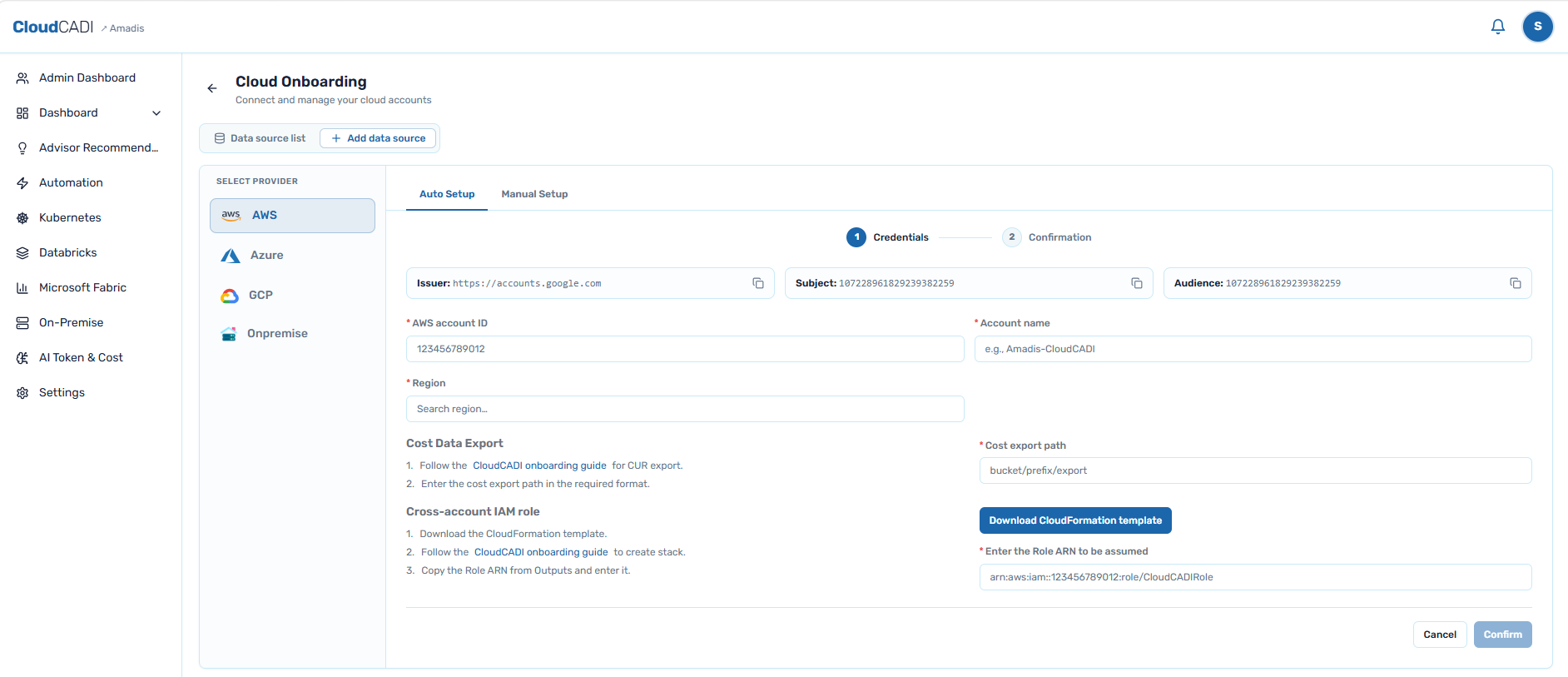

Open CloudCADI's AWS onboarding page and note down the three values shown there - Issuer, Subject, and Audience.

Auto Setup

First account (one-time setup):

Step 1 - Enter Account Details and Download Template

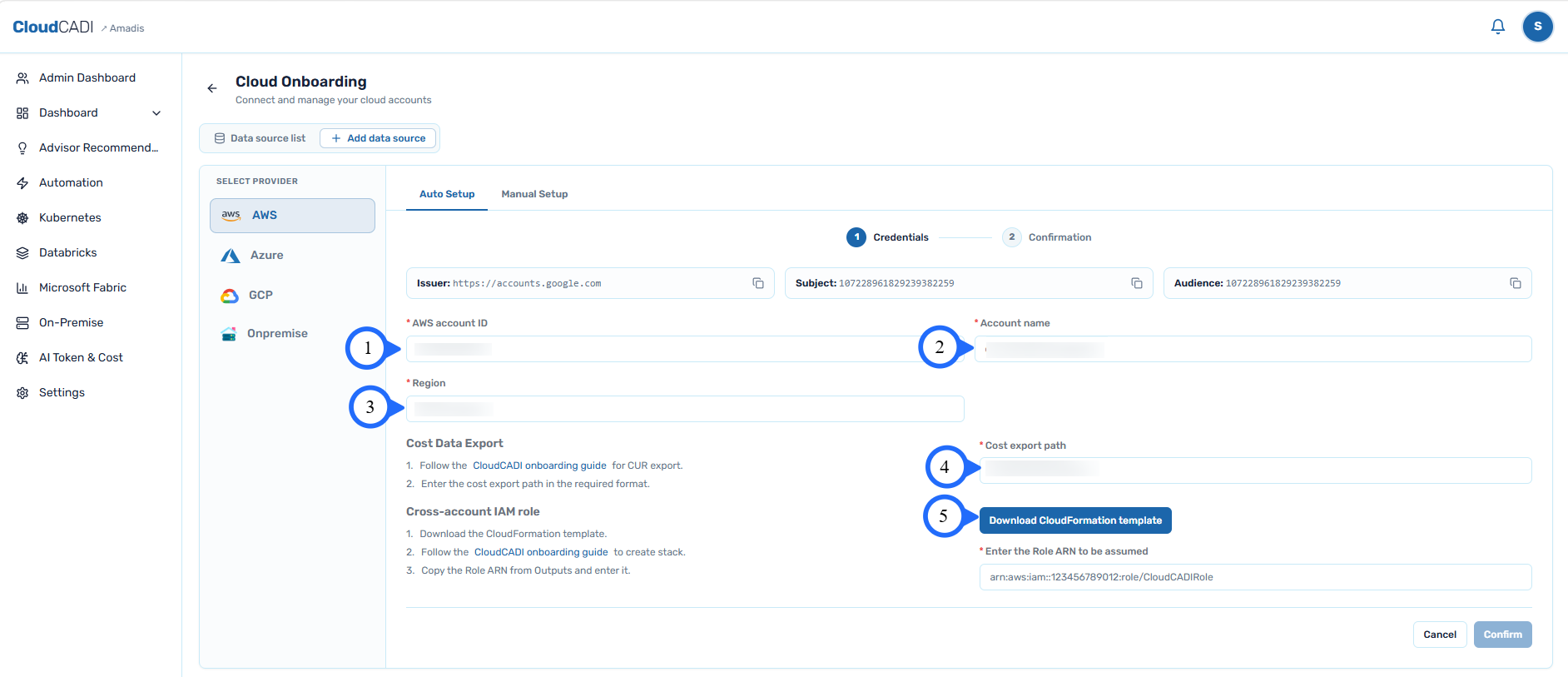

1. Enter the AWS account ID, Account name, Region, and Cost export path, then download the CloudFormation template.



Step 2 - Deploy CloudFormation Stack

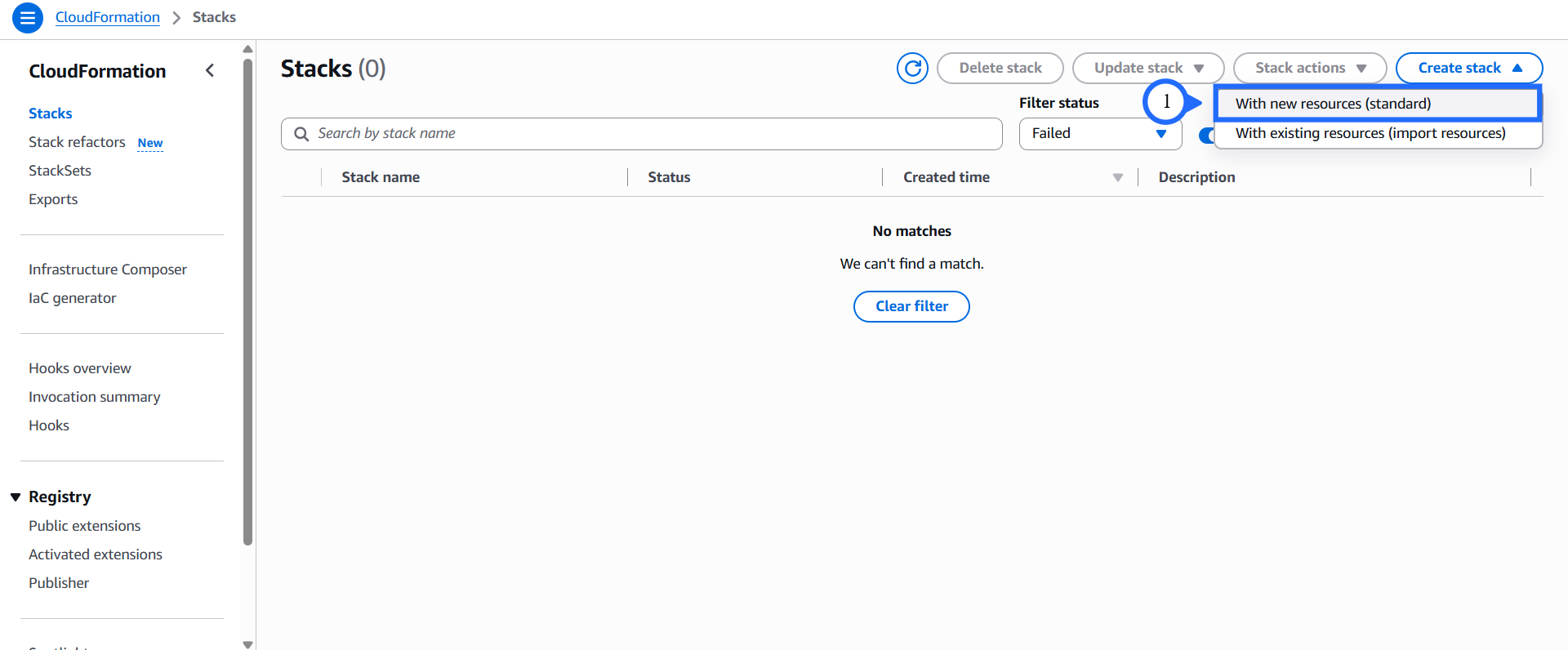

1. CloudFormation → Stacks → Create stack → With new resources (standard).

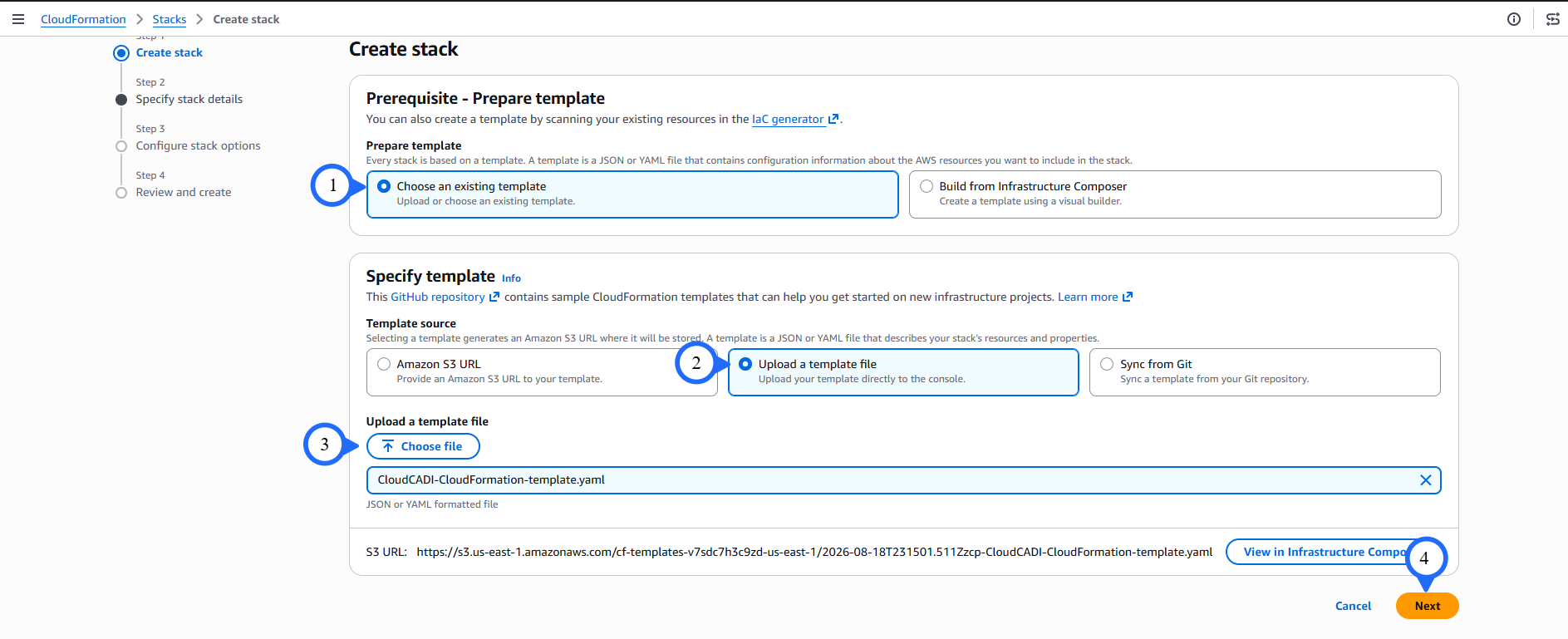

2. Choose an existing template → Upload a template file → Choose file → select the downloaded template → Next.

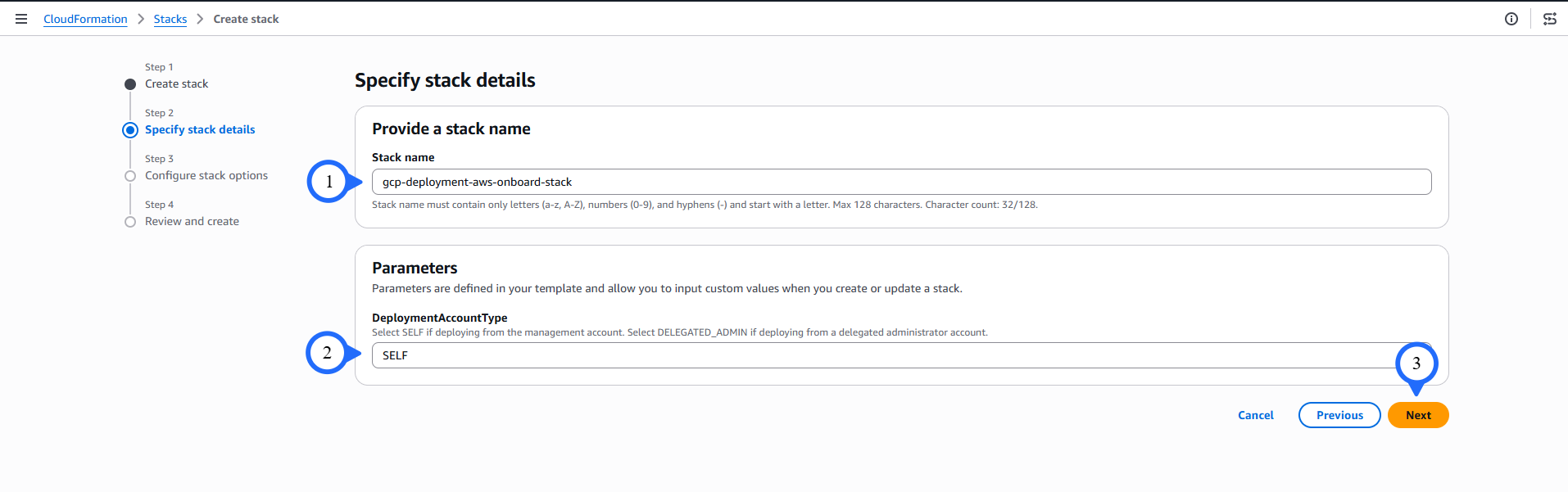

3. Under specify stack details. Enter stack name.

4. For DeployedAccountType, select SELF if the CloudCADI deployed account is the AWS Organizations management account. Select DELEGATED_ADMIN if it is a member account configured as a delegated administrator.

   Enable Delegated Administrator

   Follow these steps to enable a delegated administrator in AWS Organizations:

   1. Sign in to the AWS Management Account and open AWS Organizations → Services.

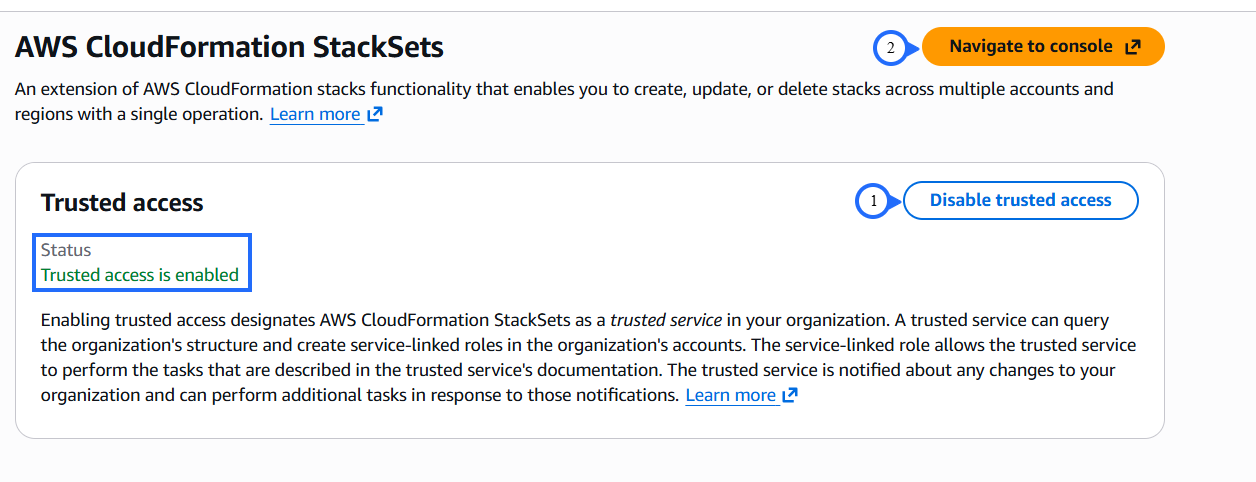

   2. Find AWS CloudFormation StackSets and click Enable trusted access.

   3. Click Navigate to Console.

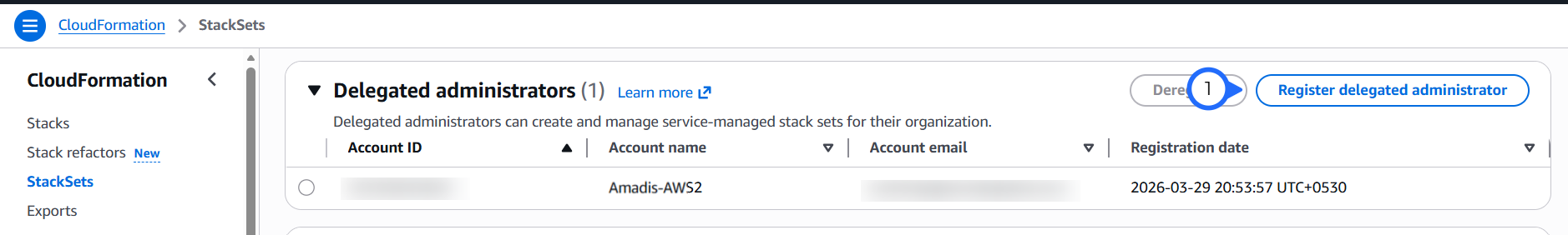

   4. Under Delegated Administrators, click Register delegated administrator.

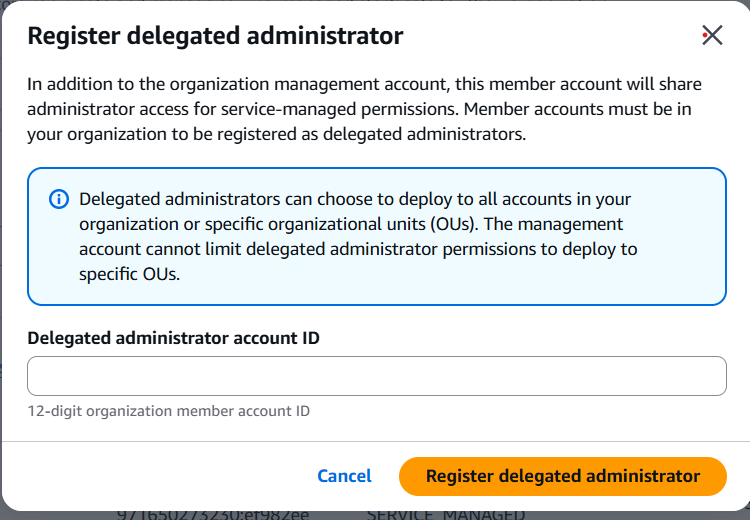

   5. A popup will appear. Enter the Delegated Administrator Account ID and click Register Delegated Administrator.

   6. The member account can now perform the required actions.





5. Click Next.

6. Check I acknowledge that AWS CloudFormation might create IAM resources with custom names → Next.



7. Scroll to the bottom and click Submit.



Step 3 - Complete Account Onboarding

1. Once the stack shows CREATE_COMPLETE, copy the CloudCADIGCPFederationRoleArn from its Outputs tab, paste it into CloudCadi, and click Confirm.

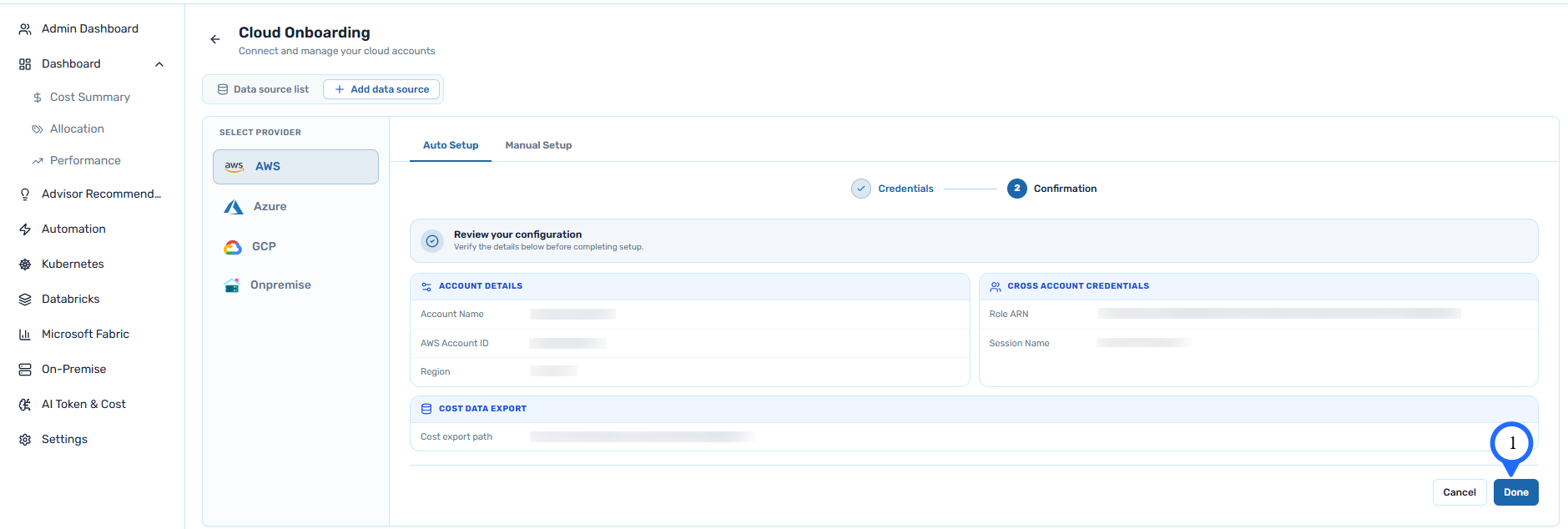

2. Review the configuration and click Done - this account is now onboarded.



Step 4 - Onboard Additional Accounts

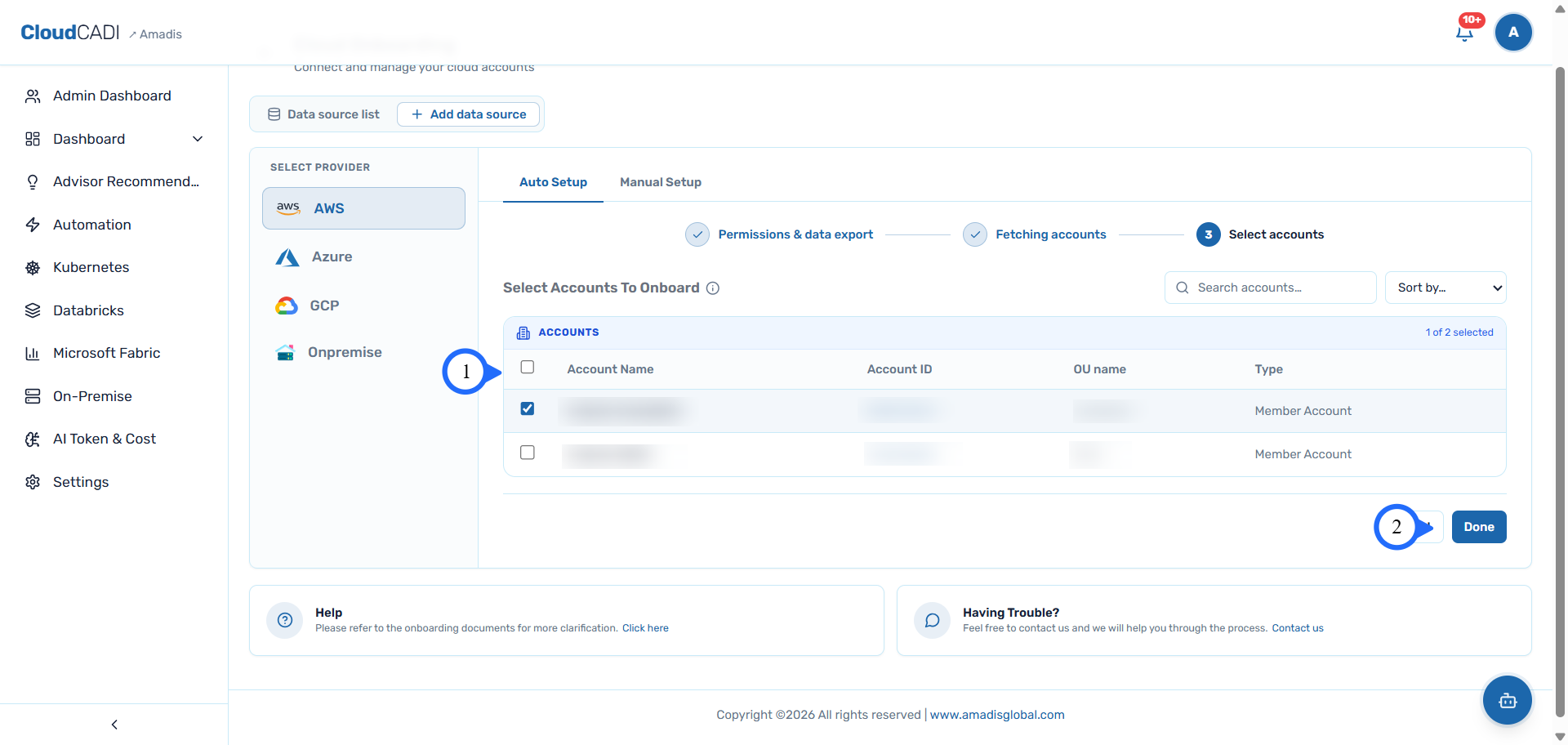

1. All other accounts in the same AWS Organization are fetched automatically. Select the accounts to onboard and click Done.



Manual Setup

Step 1 - Enter Account Details and Download Template

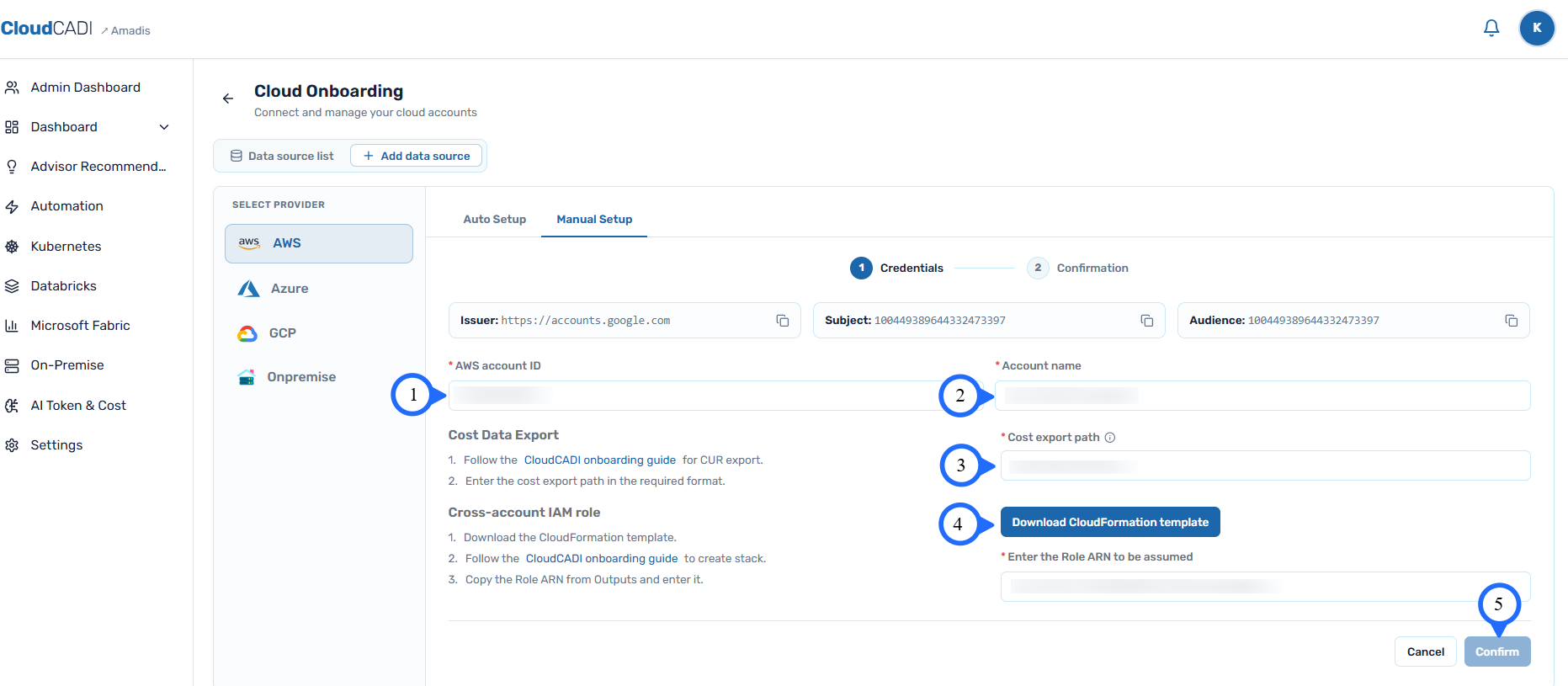

1. Enter the AWS account ID, Account name, and Cost export path, then download the CloudFormation template.



Step 2 - Deploy CloudFormation Stack

1. In the AWS Console, go to CloudFormation → Stacks → Create stack → With new resources (standard).



2. Under Prepare template, leave Choose an existing template selected. Under Specify template, choose Upload a template file → Choose file → select the template downloaded in step 1 → Next.

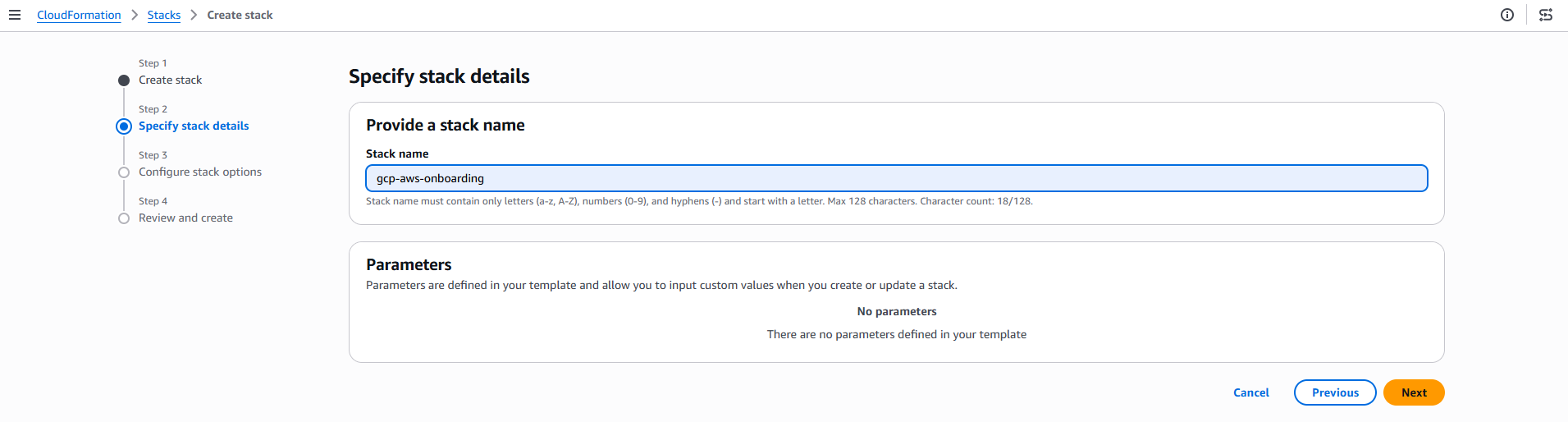

3. On Specify stack details, enter a Stack name (e.g. gcp-aws-onboarding-stack) → Next.

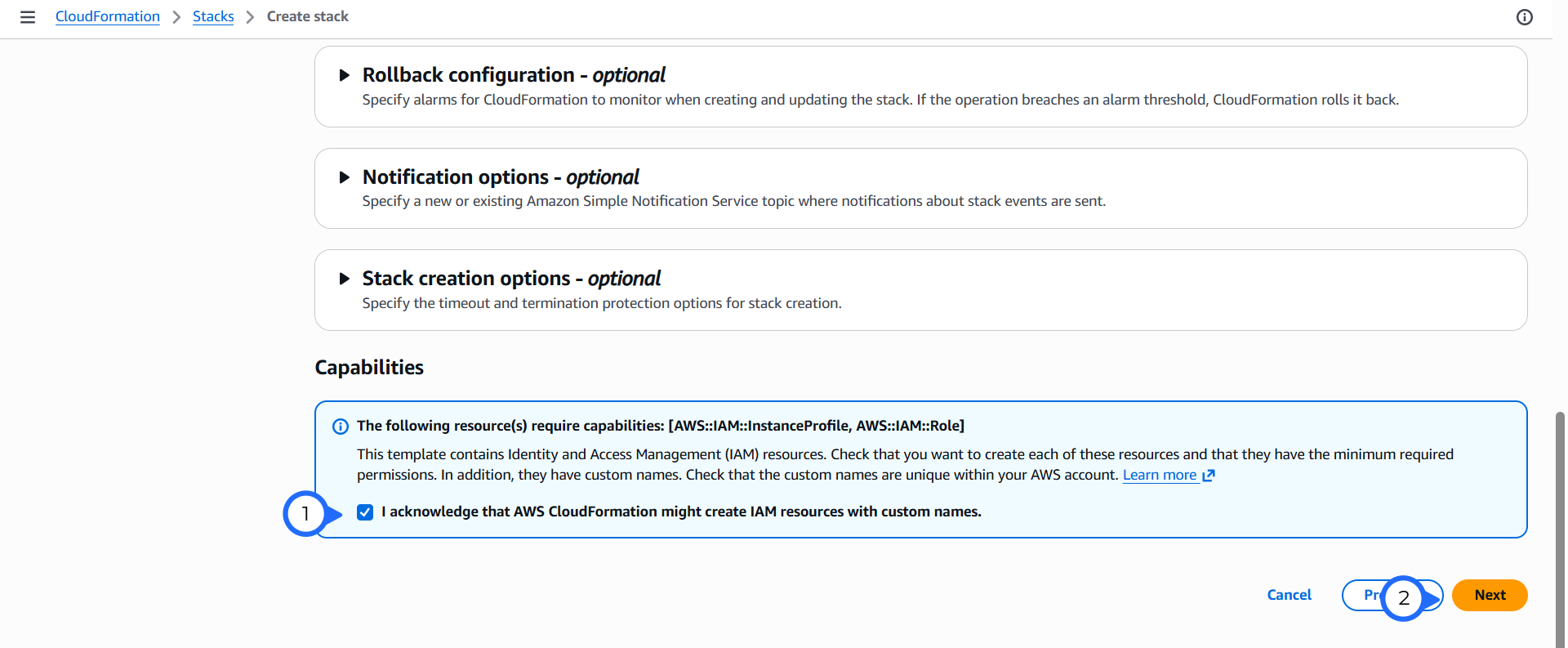

4. On Configure stack options, scroll down to Capabilities and check I acknowledge that AWS CloudFormation might create IAM resources with custom names → Next.

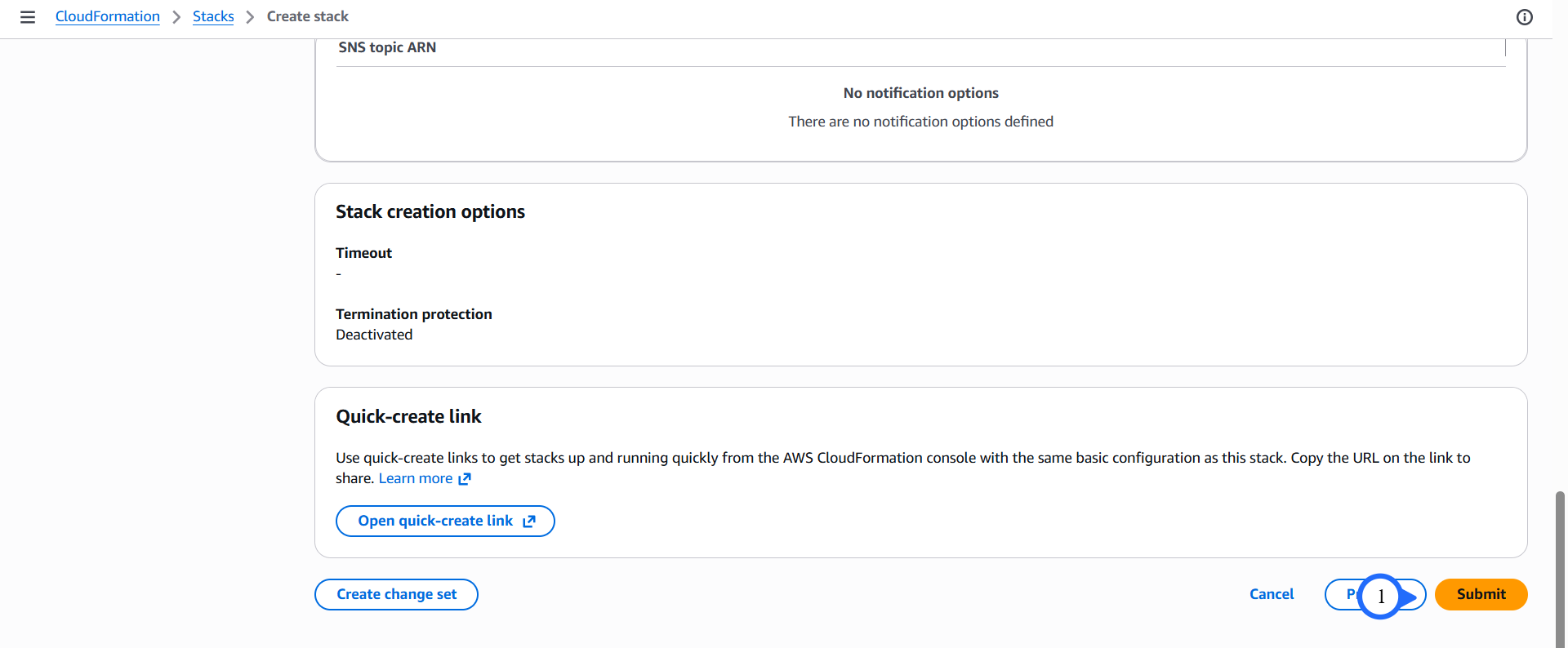

5. On Review and create, scroll to the bottom and click Submit.



Step 3 - Complete Account Onboarding

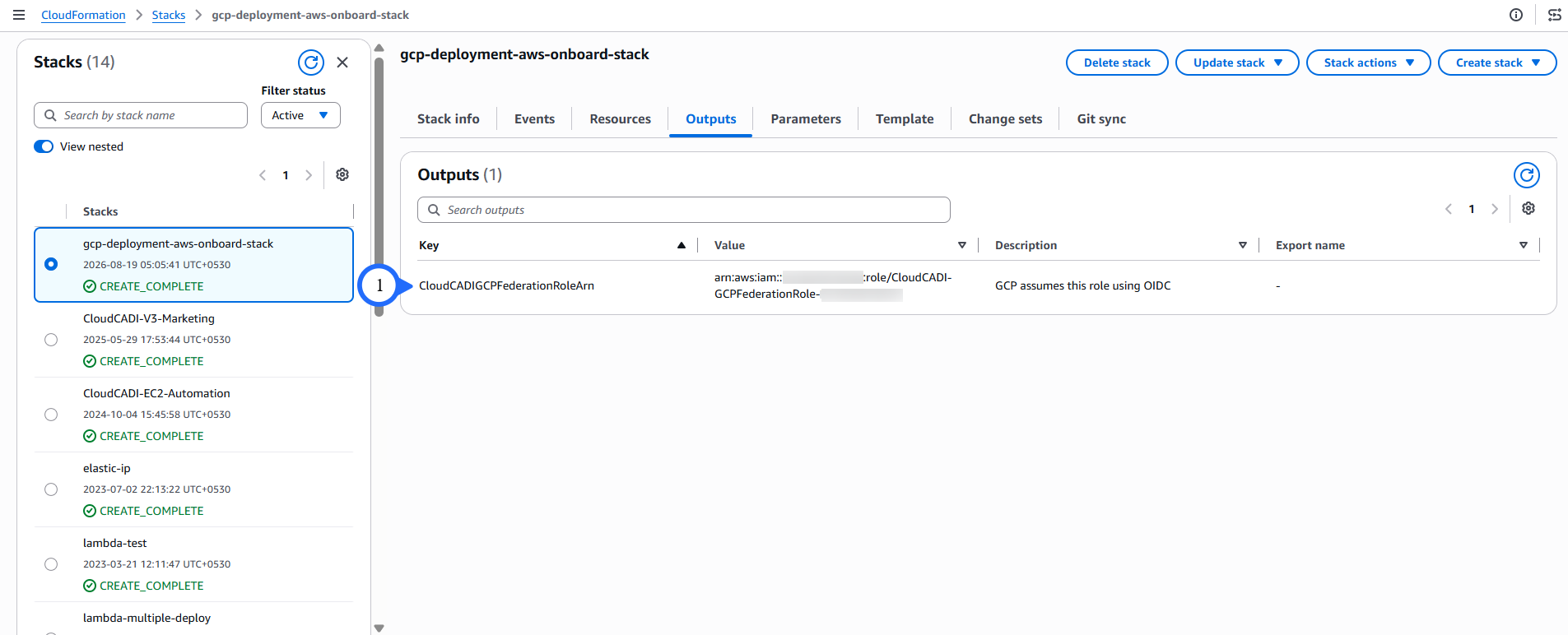

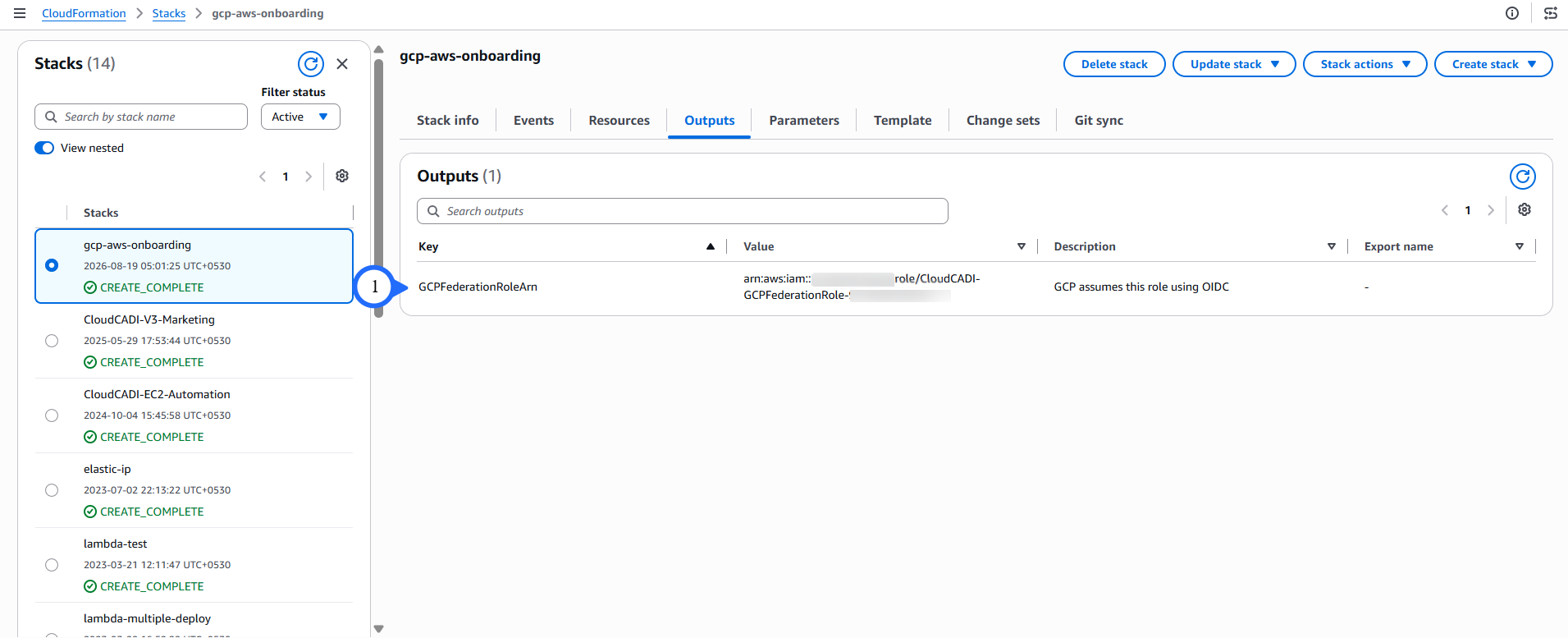

1. Once the stack status shows CREATE_COMPLETE, open its Outputs tab and copy the CloudCADIGCPFederationRoleArn value.



   Back in CloudCadi, paste it in and click Confirm.

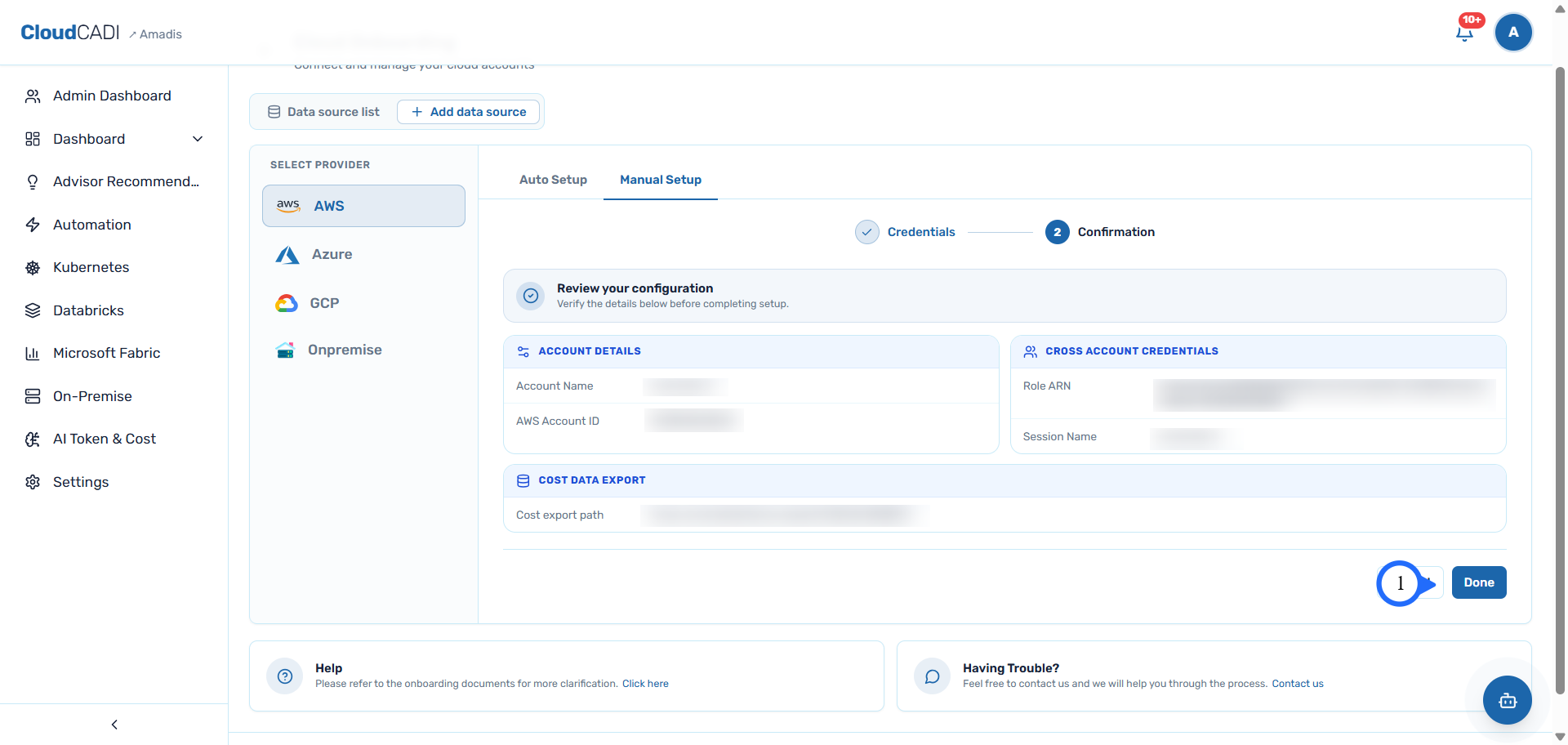

2. Review the configuration on the confirmation page and click Done.



Step 4 - Verify Data Source Creation

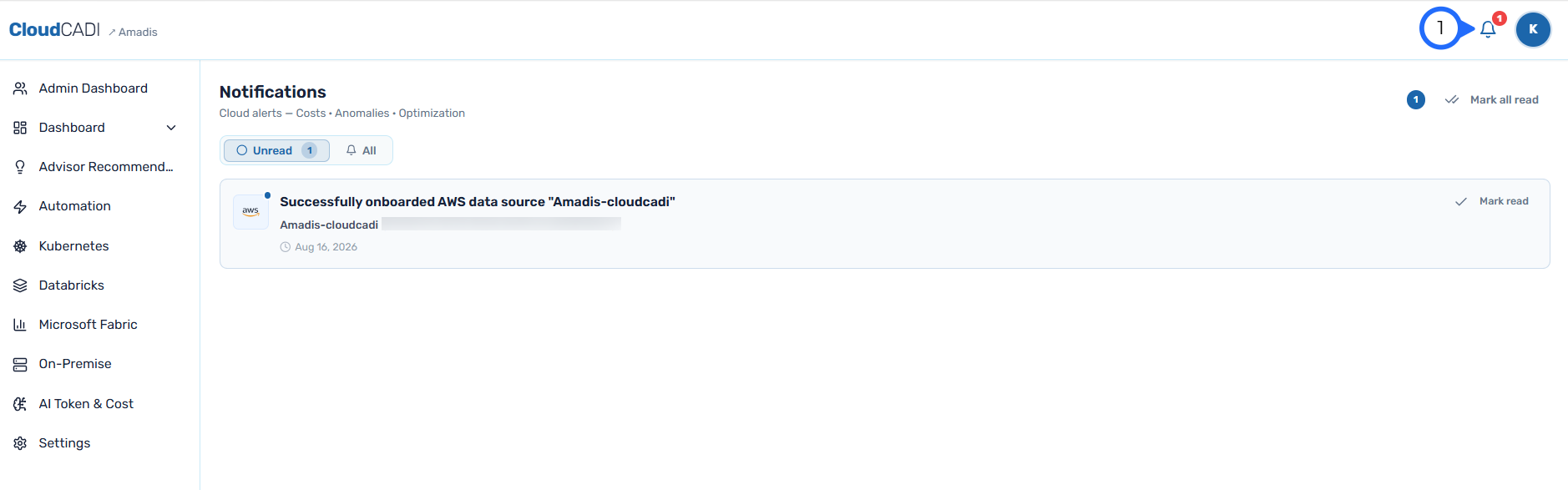

1. You will be redirected to the Data Sources list page. You will be notified once the accounts are onboarded.

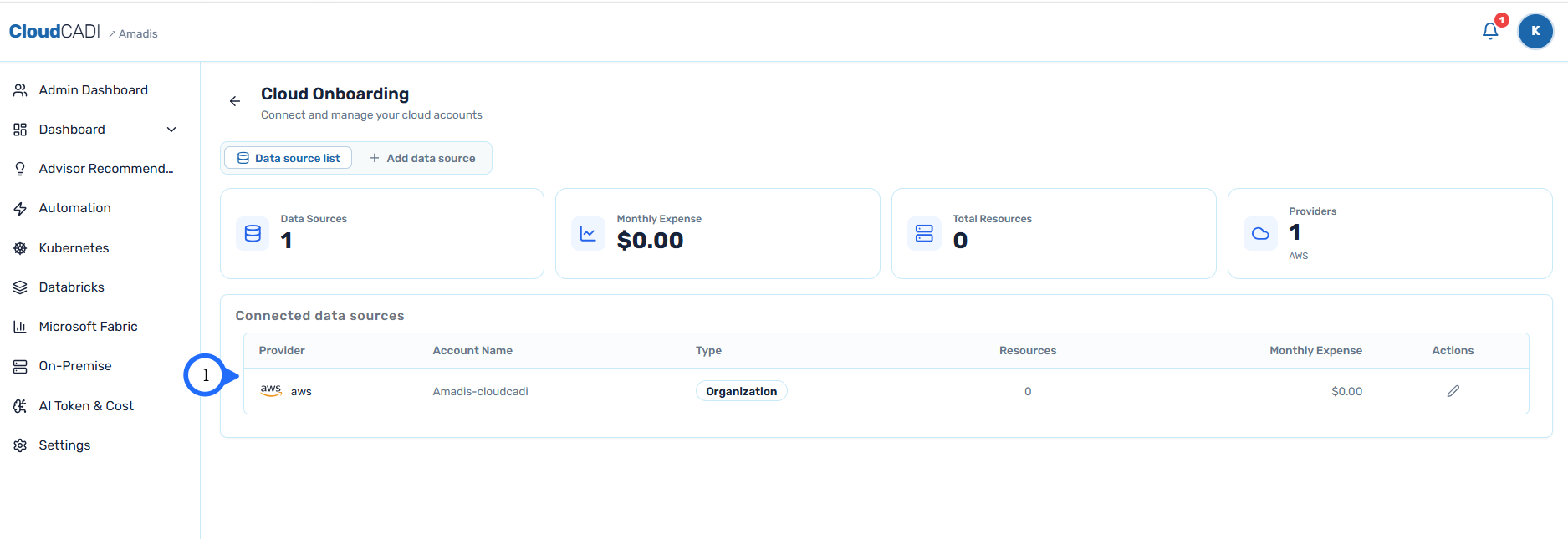

2. Navigate back to the Data Sources list tab and confirm the AWS account appears, with the provider shown as AWS and the configured Account name.
